Elation expands KL series

Elation expands KL series

Elation Professional has added a full-color-spectrum soft light to its KL series (Key Light) of LED luminaires, the KL Panel. Optimized for the color temperature-adjustable requirements of film and television, the KL Panel uses a 295 W RGBW + Lime + Cyan LED Array and produces soft white or full-color washes up to 24,000 field lumens at a 100° half-peak angle.



Color reproduction offers a CRI over 95 while color temperature is adjustable from 2,000 to 10,000 K for a wide choice of variable color or white shade projections. Additional color tuning is possible through a green-shift adjustment and virtual gel library.



Besides its spectrum of chromatic options, the dynamic soft light luminaire also features 16-bit dimming all the way to zero and 16-bit selectable dimming curve modes for programming ease, as well as electronic strobe. Adjustable and removable 8-leaf barn doors allow for customized shaping of the beam for more precise illumination and less light spill.



The KL Panel is fully optimized for broadcast and film environments with 900-25000 Hz LED refresh rate adjustment for flicker free operation. Compact and portable, it can be mounted on a stand or suspended using any standard clamp or the included Junior pin adapter. A rugged housing with impact-resistant surrounds and base plate ensure that the fixture can handle rough handling.



Fully self-contained without the need for an external power supply, the fixture can be powered remotely through its integrated 4-pin XLR 24-36 VDC battery input. Professional control options include DMX, Art-Net and sACN. It can also be controlled manually using the included encoders and OLED display, providing instant control of intensity, color temperature, green shift and other settings. The integration of Elation’s E-Fly wireless DMX system allows for more flexibility of use.

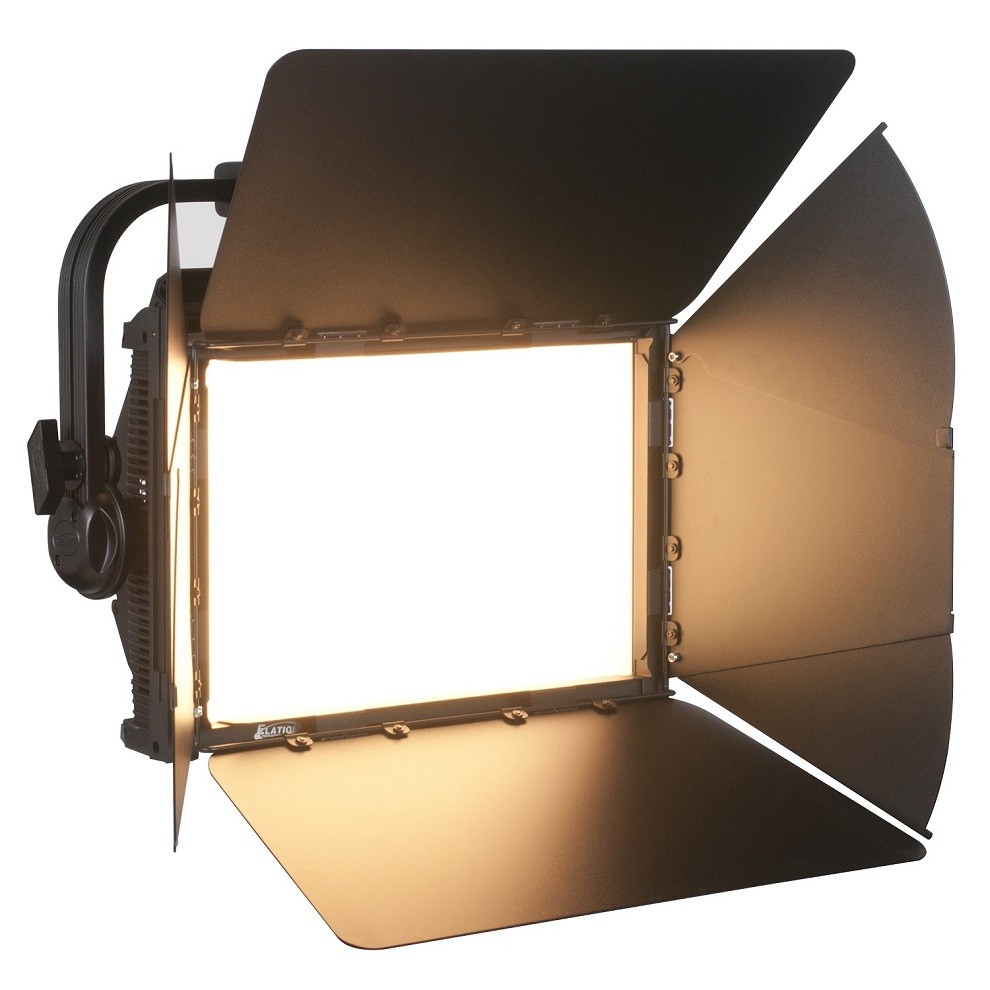

(Photo: Elation)



www.elationlighting.com
