Ayrton launches new products

Ayrton launches new products
Ayrton launches new products

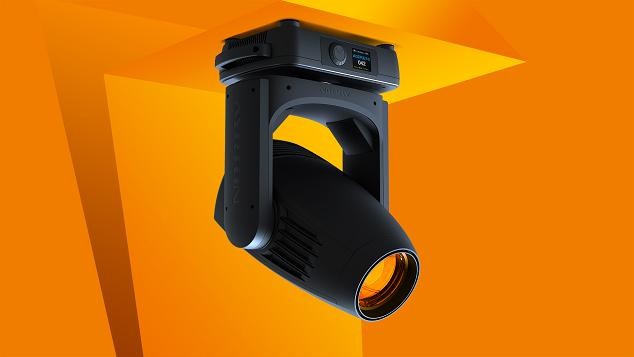

Ayrton has launched various new products in the fall of 2017, including the Ghibli and the MiniPanel-FX. Ghibli is Ayrton’s first LED spot luminaire and marks an expansion of Ayrton’s Automated Lighting range. Ghibli offers 13 lenses including a 137 mm frontal lens, an 8:1 zoom from 7° to 56° and a selectable high CRI mode amongst its features, all housed in a compact package with a sleek industrial design.



Ghibli uses less than 900 W of power in total and delivers an output of 23,000 lumen. It is fitted with a special filter for optimising the colour rendering index. This ‘mode’ increases the CRI and can be activated remotely.



Ghibli also offers CMY colour mixing, variable CTO and full field framing. The complete effect section includes two gobo wheels (one rotating, one static), a fixed colour wheel, a prism, an animation wheel and two frost filters, in addition to focus, iris, electronic dimming, strobe and engine animation control capabilities.



The full field framing system is rotatable to 60° and allows each frame to be positioned with precision on a 100% surface area in all positions, capable of a full wipe. New custom-designed gobo patterns have been created in collaboration with lighting designers.



Ghibli’s main airflow is directed over the heatsink at the rear of the fixture and avoids passing over the optical train, and its sealed LED engine means less maintenance or chance of failure. This results in fewer cleaning interventions.

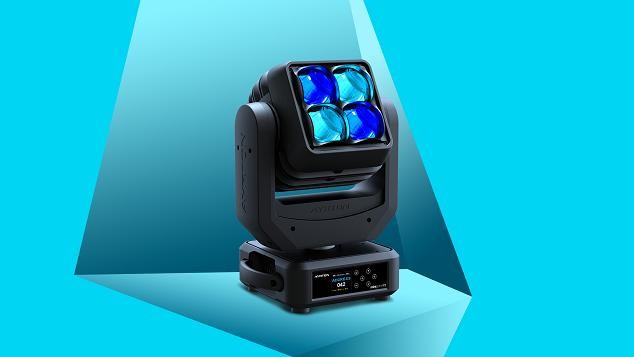

Ayrton’s new MiniPanel-FX is a diminutive version of the MagicPanel-FX, with a zoom spread of 3.6° to 53°. MiniPanel-FX houses four of Ayrton’s square lenses in a neat 2 x 2 configuration to form a powerful beam and wash light. With characteristic endless double rotation, MiniPanel-FX is a complement to its siblings, MagicPanel-FX and MagicBlade-FX.



www.ayrton.eu
